Sub-Zero UC-24 Undercounter: the All Refrigerator Model
The all-refrigerator member of Sub-Zero's UC-24 undercounter family: no freezer, no wine racks, cold storage below the counter.
- Signed
- Dean Halvorsen
- Bench
- sealed systems and airflow
- Years at it
- 19
- Holds
- EPA 608 certified
- Checked
- September 2026
At a glance
- What the letters say
- UC for undercounter; Sub-Zero's guide calls this one the all refrigerator model
- Controls
- WARMER and COLDER move the setting a degree at a time; POWER shows OFF
- Inside
- Glass shelves and a clear utility bin that slides out
- Door alarm
- A chime after the door has been ajar for more than 60 seconds
- Condenser
- Behind the kickplate, to be cleaned every three to six months
- The tag
- Upper left, inside the cabinet
Checked against Sub-Zero undercounter refrigeration use and care guide · Sub-Zero model number key · Sub-Zero serial tag locations
What it is doing, and what that means
01Warm inside, and the compressor hardly ever rests?
If the grille at the foot is grey with lint and the unit settles within a day of a condenser cleanSafe to wait
Turn it off at POWER first and wear gloves; the fins are sharp. A clean every three to six months keeps this branch from coming back.
If the condenser is clean, the door seals, the kitchen is cool, and it still runs warmCall (425) 321-3414
The suspects are behind panels now: a slowed fan motor, a sensor that misreads, or the sealed system. We read them before pricing anything.
02Dark panel and no cold?
If the display reads OFF, or the breaker had tripped, and it runs normally once switched back onSafe to wait
A POWER key touched while wiping the panel is the most common dark display there is.
If the breaker is on, POWER brings nothing up, and the cabinet is warmingCall (425) 321-3414
Power is reaching the house circuit but the unit is not answering. That is ours to trace, not yours.
What Sub-Zero calls this one
Its undercounter guide names the UC-24BG, UC-24C and UC-24CI by number, then covers a fourth by description: the all refrigerator model, one compartment, no ice. That is this page. Read us whatever is on your tag.

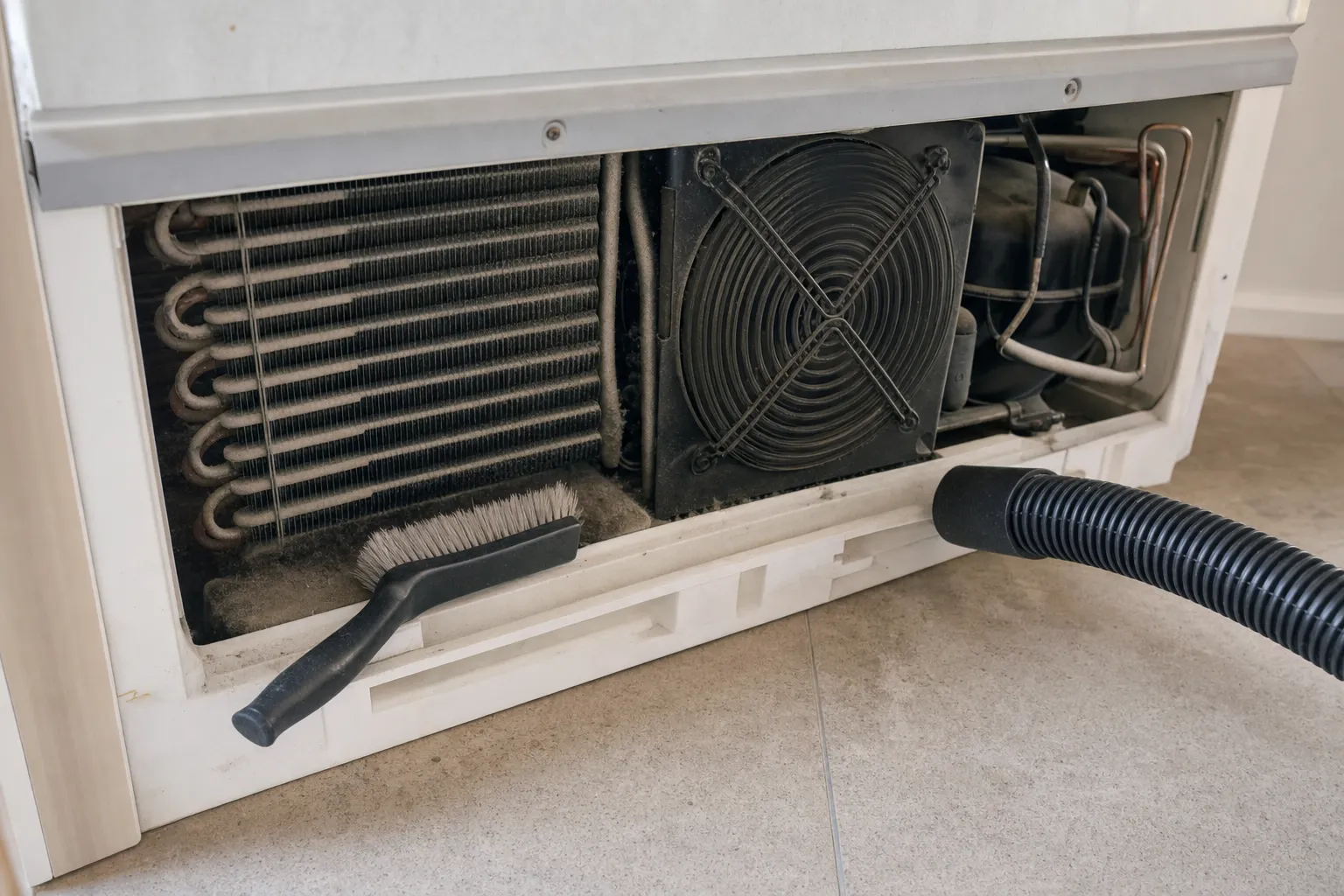

The kickplate is the whole story, most of the time
The condenser sits behind the kickplate, a hand’s width above whatever the floor collects. Dog hair, flour, remodel dust: it drifts into the coil, and a coil that cannot shed heat runs long and warm. Sub-Zero warns that skipping the clean costs temperature and, in time, the machinery.
So the order is fixed: clean, wait a day, decide. Still warm on a clean coil in a cool kitchen, and the fan-motor line is where the price lands. Sub-Zero also lists showroom mode among the causes of a warm unit; if yours is new and has never held cold, say so when you ring.
Wait or call: the UC-24
| What it is doing | Check first | Safe to wait if | Call if |
|---|---|---|---|
| SERVICE flashing on the panel | The condenser, then POWER off and back on | It goes out and stays out after both | It returns after a clean condenser and a restart |
| Light out, food still cold | Whether the door was left ajar; Sabbath mode | The light returns after an hour shut, or when POWER ends Sabbath mode | Still dark after an hour with the door closed |
| Frost building inside | The door closing fully; the gasket for splits | It stops growing once the door closes properly | The gasket is torn, or frost returns with a good seal |
| Chiming with the door shut | Something inside holding the door off its seal | It stops once the obstruction is moved | It keeps chiming with the door pressed shut |
Sub-Zero Repair Woodinville · (425) 321-3414 · phone staffed 24/7 · wine and undercounter calls 8:00 am – 8:00 pm, seven days
The price line to read first
A fan motor, cabinet side or machine side $300–$660
On an $89 visit that comes off the repair once you approve it. The full breakdown: Undercounter Repair Cost.
Booked as
Diagnosis and repair of built-in and integrated Sub-Zero refrigerator columns, including sealed-system and defrost faults.
If it is doing something else
Each page forks on what that unit is most often brought to us for, so the answer to a different symptom may sit next door: the Sub-Zero UC-24C, the Sub-Zero DEU2450R and the Sub-Zero DEU2450RO. All of them price on the same cost page.
Asked about the UC-24
- My UC-24 is warm and the display says OFF. Is it broken?
- Probably not. POWER on the control panel switches the unit off, and a wipe of the panel can touch it by accident. Touch POWER once and give it a few hours to pull down. If it will not come back on, call Sub-Zero Repair Woodinville on (425) 321-3414 with the tag details.
